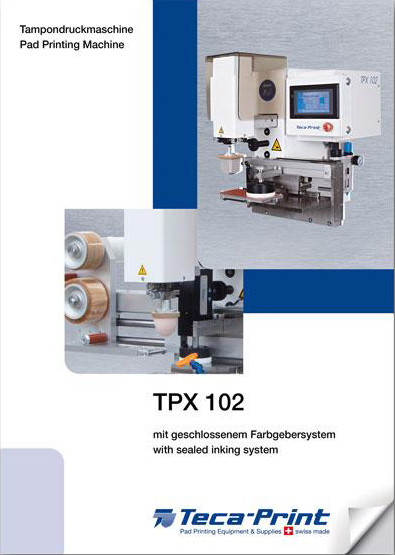

TPX 102

Pad printing machine for precise, single-colour prints

Your advantage:

  • 1 colour
  • highest precision and accuracy
  • electropneumatical
  • compact design
  • sealed inking system
  • lateral sliding of the ink cup
  • available as “édition cadrans”

The TPX 102 electro-pneumatic pad printing machine has a sealed inking system with lateral cup movement.
Maximum precision and repeat accuracy characterise the TPX 102 as a high-quality pad printing machine, even for the finest print images.
Either the rotating cup cylinder or the cup holder with bayonet lock are available for fixing the cup. In addition to various accessories such as a machine base and co-ordinate table, an automatic pad cleaning system and many other peripheral devices are available for the TPX 102.
The TPX 102 is also available in the “Édition Cadrans” version with special extras and functions for the watchmaking industry.

Teca Print TPX TPX102 Fotos Tampondruckmaschine TPX 102 edition cadrans 1 500x500
Teca Print TPX TPX102 Fotos TPX 102 Farbgeber 1 500x500
Teca Print TPX TPX102 Fotos TPX 102 Interferenzfarbe Detail 500x500

Technical data

  • Colors: 1 color
  • Stroke ink carriage:
    150 mm
  • Ink cup sizes:
    Ø 56 / Ø 65 / Ø 72 / Ø 86 / Ø 96 mm
  • Plate sizes:
    standard plate widths: 80 / 100 mm
    standard plate depths: 150 /200 / 220 / 250 mm
  • Output: up to 1’400 cycles per hour
  • Drive system: electropneumatical
  • Repeat accuracy:
    < ± 0.02
  • Printing force: 250 N (printing force has to be balanced)
  • Mains connection: 230 V / 50 Hz, 5 – 6 bar air pressure
  • Air consumption: 0.47 litres / cycle at 6 bar
  • Control: PLC – HMI touchscreen
  • Vertical pad stroke:
    100 mm / 140 mm  electrical infinitely adjustable
  • Outreach pad carriage:
    58,5 mm
  • Weight:
    approx. 63,5 kg without base
  • Dimensions (WxHxD): 391 x 560/600 x 706 mm
  • All specifications and options depend on the selected vertical pad stroke and are partly defined by this. We will be happy to advise you in detail.
