High-performance pad printing machine
for integration into systems
Your advantage:
- servo drive control
- output of 1’500 to 4’000 cycles per hour
- ideal for integration into automations
- sealed inking system
- 1 colour
- increase of your process reliability thanks to options like plate cooling and temperature compensation

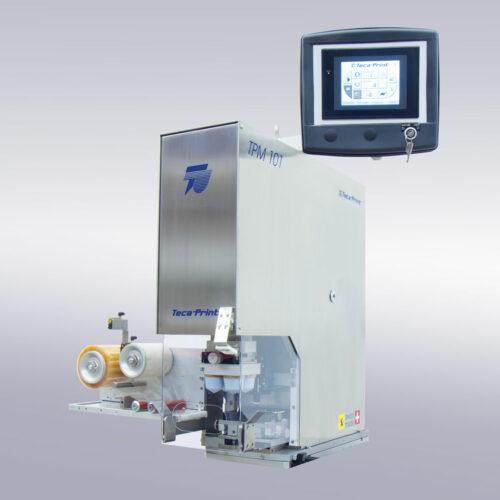

Compact and user-friendly, the electromechanical state of the art TPM 101 pad printing machine is well-equipped to meet the requirements of today’s market.
The highest demands for cycle speed and print accuracy are fulfilled: the single colour printing machine is exceptionally well-suited for integration into automated systems with a print capacity of 1’500 to 4’000 prints per hour.
With plate cooling and temperature compensation, new special technical functions are available as an option, which help to increase process stability and ensure a consistently high-precision print result.
A coloured touch screen display with its clear and simplified user menu structure provides for a user friendly handling.
Technical data
- Colors: 1 color
- Ink cup sizes:
Ø in mm: 72 / 96 / 105* / 115*
*overlapping ink cups - Plate sizes:
plate widths 100 / 120 mm
plate depth 220 mm - Output: 1’500 to 4’000 cycles per hour
- Drive system: electromechanical
3 axis control with 3 servo motors, infinitely adjustable parameters - Printing force: 750 N (printing force must be balanced)
- Mains connection: 230 V / 50 Hz, (5 – 6 bar air pressure required for some pneumatic accessories)
- Control:
PLC – HMI touchscreen, option of interface connection via data bus system possible - Vertical pad stroke:
electromechnical, 210 mm infinitely adjustable - Cliché plate adjustment:
± 2 mm (x-axis), ± 2° (rotation) - Weight:
approx. 72 kg without base - Dimensions (WxHxD): 210 x 720 x 730 mm
